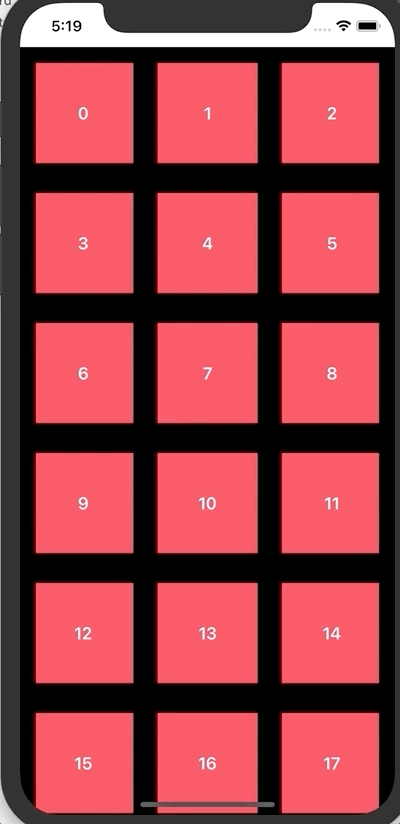

SwiftUI-制作一个简易排序GridView

来源: https://stackoverflow.com/questions/62606907/swiftui-using-ondrag-and-ondrop-to-reorder-items-within-one-single-lazygrid

本文主要使用到了onDrag和onDrop方法，此外还有类似的onInsert

//
//  SwiftUIView.swift
//  Demo
//
//  Created by Zr埋 on 2020/12/1.
//

import SwiftUI
import UniformTypeIdentifiers

struct GridData: Identifiable, Equatable {
    let id: Int

    static func == (lhs: Self, rhs: Self) -> Bool {
        return lhs.id == rhs.id
    }
}

func getData() -> [GridData] {
    var data: [GridData] = []
    for i in 0..<100 {
        data.append(GridData(id: i))
    }
    return data
}

struct SwiftUIView: View {
    @State private var data = getData()
    @State private var draggingData: GridData?

    // 定义VGrid一行的数据, 这里的spacing是行间距
    let columns: [GridItem] = [
        GridItem(.flexible(minimum: 50, maximum: 200), spacing: 30),
        GridItem(.flexible(minimum: 50, maximum: 200), spacing: 30),
        GridItem(.flexible(minimum: 50, maximum: 200), spacing: 30),
    ]

    var body: some View {
        ScrollView {
            // 使用LazyVGrid而不是List以实现复用Cell型List
            // spacing为列间距, 给定了行视图
            LazyVGrid(columns: columns, spacing: 30, content: /*@START_MENU_TOKEN@*/{
                ForEach(data) { d in
                    Text(d.id.description)
                        .font(.headline)
                        .foregroundColor(.white)
                        .frame(width: 100, height: 100, alignment: .center)
                        .background(Color.pink)
                        // 设定即将下落的效果
                        .overlay(draggingData?.id == d.id ? Color.white.opacity(0.8) : Color.clear)
                        // 这里返回一个NSItemProvider
                        .onDrag({
                            self.draggingData = d
                            // 虽然这用的是这个, 但常常是使用URL来作为文件的标识符 例如 URL(...) as NSURL
                            return NSItemProvider(object: d.id.description as NSString)
                        })
                        // OnDrop就比较麻烦, 首先of参数接收一个能够接收拖放文件类型的表述符数组, delegate接收一个
                        // 遵循DropDelegate协议的对象, 我们可以通过重写DropDelegate中的函数来实现回调
                        .onDrop(of: [ UTType.text], delegate: DropRelocateDelegate(item: d, listData: $data, currentData: $draggingData))
                }
            }/*@END_MENU_TOKEN@*/)
        }
        // 这一个onDrop为了处理没有拖到data Item上的Item, 这些Item被认为是移到了ScrollView上,
        // 所以在这里加上一个处理函数
        .onDrop(of: [UTType.text], delegate: DropOutsideDelegate(currentData: $draggingData))
        // 添加动画
        .animation(.easeInOut)
        .padding()
        .background(Color.black)
        .edgesIgnoringSafeArea(.bottom)
    }
}

struct DropOutsideDelegate: DropDelegate {
    @Binding var currentData: GridData?

    func performDrop(info: DropInfo) -> Bool {
        currentData = nil
        return true
    }
}

struct DropRelocateDelegate: DropDelegate {
    let item: GridData
    @Binding var listData: [GridData]
    @Binding var currentData: GridData?

    func dropEntered(info: DropInfo) {
        // 对移动位置进行判断
        if item != currentData {
            let from = listData.firstIndex(of: currentData!)!
            let to = listData.firstIndex(of: item)!
            if listData[to].id != currentData!.id {
                listData.move(fromOffsets: IndexSet(integer: from), toOffset: to > from ? to + 1: to)
            }
        }
    }

    func dropUpdated(info: DropInfo) -> DropProposal? {
        return DropProposal(operation: .move)
    }

    func performDrop(info: DropInfo) -> Bool {
        self.currentData = nil
        return true
    }

}

struct SwiftUIView_Previews: PreviewProvider {
    static var previews: some View {
        SwiftUIView()
    }
}

参考：

https://swiftui-lab.com/drag-drop-with-swiftui/

https://swiftwithmajid.com/2020/04/01/drag-and-drop-in-swiftui/
